滾輪穩定器

滾輪穩定器用于各種絞孔作業中，可以在硬地(dì / de)層或研磨性岩層中使用，保持井眼的标準直徑。鑽井工具

推薦産品

This is a hydraulic jar, with the characteristics of compact structure, reliable seal, high strength and optimum up jarring effect. It is the first selected tool in fishing operation in the case of freeing the sticking point by up jarring. When used with

描述

滾輪穩定器用于各種絞孔作業中，可以在硬地(dì / de)層或研磨性岩層中使用，保持井眼的标準直徑。當鑽頭磨損到小于标準尺寸時，滾輪穩定器可以擴大井底井徑達到标準井徑。無論鑽直井還是定向井，三滾輪穩定器可以确保後面的鑽頭或套管将能下入正常的井徑尺寸，滾輪穩定器的特點是與井壁摩擦阻力小，耐磨性強，使用壽命長。

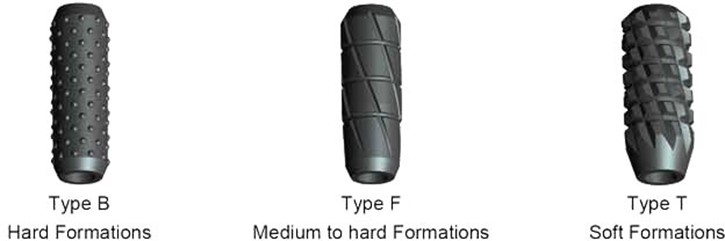

Type T: 軟地(dì / de)層

Type F: 中硬地(dì / de)層

Type B: 硬地(dì / de)層 WG滾輪穩定器-滾輪刀.jpg

Specifications
Model	Hole Size mm (inch)	Roller Diameter mm (inch)	Roller Length mm (inch)	Fishing Neck OD mm (inch)	ID mm (inch)	OAL mm (inch)	Conn.
							Upper	Lower	Remark
WG-149	149.2 (5 7/8)	46 (1 13/16)	200 (7 7/8)	120.7 (4 3/4)	31.8 (1 1/4)	1600 (63)	NC38	NC38	String
								3 1/2 REG	Near Bit
WG-156	155.6 (6 1/8)	50.8 (2)	200 (7 7/8)	120.7 (4 3/4)	31.8 (1 1/4)	1600 (63)	NC38	NC38	String
								3 1/2 REG	Near Bit
WG-216	215.9 (8 1/2)	71 (2 13/16)	200 (7 7/8)	165.1 (6 1/2)	44.5 (1 3/4)	1800 (70 7/8)	NC50	NC50	String
								4 1/2 REG	Near Bit
WG-311	311.1 (12 1/4)	100 (3 15/16)	300 (11 13/16)	203.2 (8)	57.2 (2 1/4)	1900 (74 13/16)	6 5/8 REG	6 5/8 REG	String
									Near Bit
WG-444	444.5 (17 1/2)	140 (5 1/2)	304 (11 21/31)	228.6 (9)	76.2 (3)	2100( 82 43/64)	7 5/8 REG	7 5/8 REG	String
									Near Bit
